Topton 4×2,5G LAN Firewall Mini PC Intel N100 versión superior i226-V enrutador sin ventilador PC Proxmox VPN servidor pfSense OPNsense AES-NI
$365.98 – $788.86
Size and packaging guidelines
Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.
Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.
Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
- Producto químico muy preocupado: Ninguno
- Frecuencia principal del procesador: Depends on CPU
- Uso: Comercial
- Capacidad de memoria: ≥4 GB
- Capacidad del disco duro: 1 TB
- Número de modelo: X4E/X4D
- Marca del procesador: İntel
- Modelo de procesador: N100/N6000/N5105/J4125
- Tipo: Miniescritorio
- Tipo de tarjeta gráfica: Tarjeta integrada
- Nombre de la marca: Topton
- Origen: CN(Origen)
- Certificación: CE,FCC,RoHS
- Tipo: Mini-PC
Processor parameter for referance only
|
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
|
Alder Lake Intel N100 |
4 cores, 4 threads |
6M |
|
3.40 GHz |
6W |
|
Celeron N4000 |
2 cores, 2 threads |
4M |
1.10 GHz |
2.60 GHz |
6W |
|
Celeron N5100 |
4 cores, 4 threads |
4M |
1.10 GHz |
2.80 GHz |
6W |
|
Celeron N5105 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.90 GHz |
10W |
|
Celeron J4125 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.70 GHz |
10W |
|
Pentium Silver N6000 |
4 cores, 4 threads |
4M |
1.10 GHz |
3.00 GHz |
6W |
Product Highlight

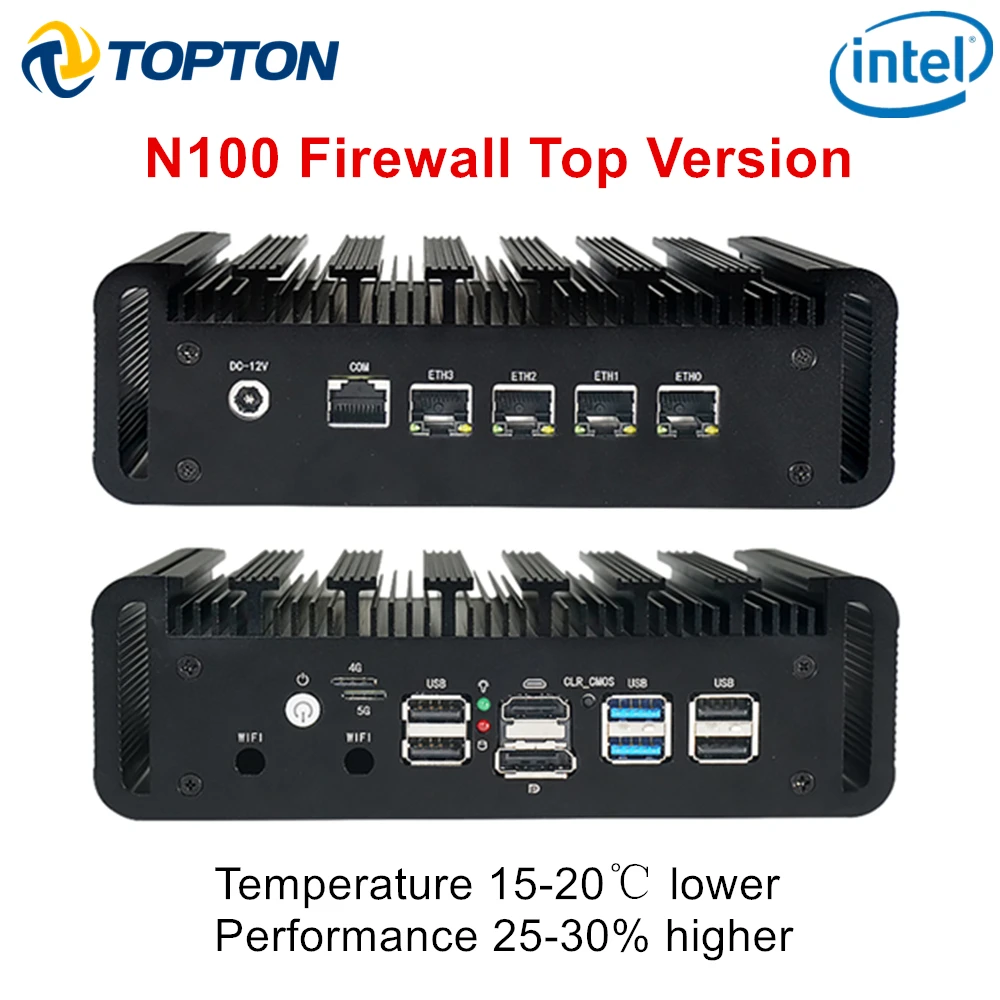

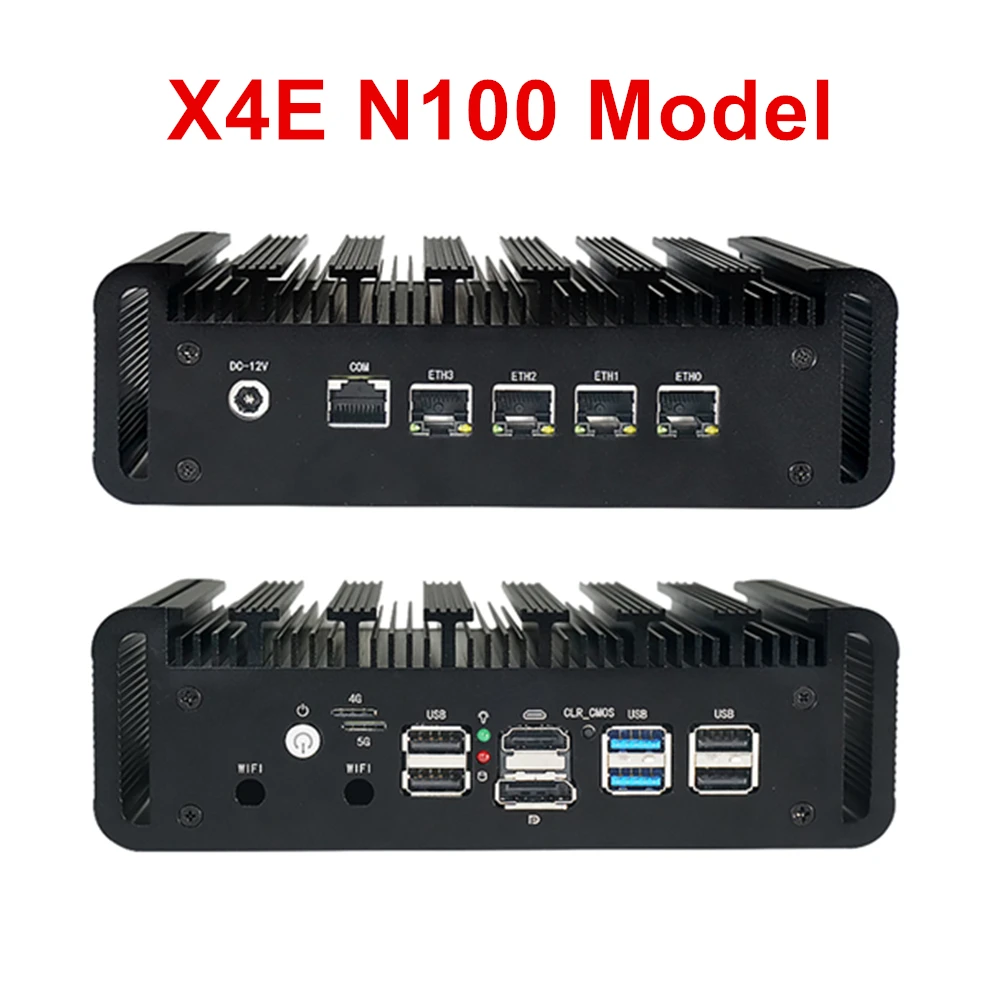

X4E N100 Model:
-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xRJ45 COM console, 1x5G SIM slot, 1x4G/3G SIM slot.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1×2.5”SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/5G/4G/3G(USB protocol) connection.

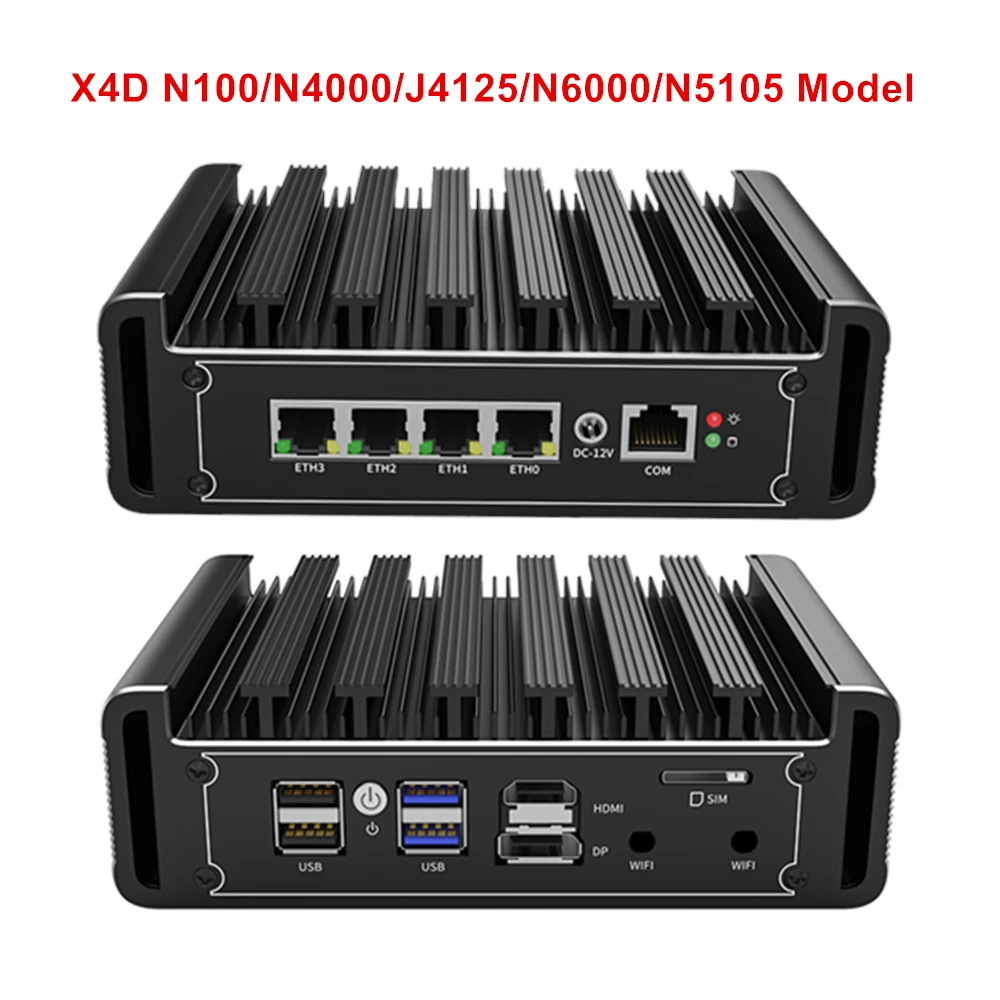

X4D Model：

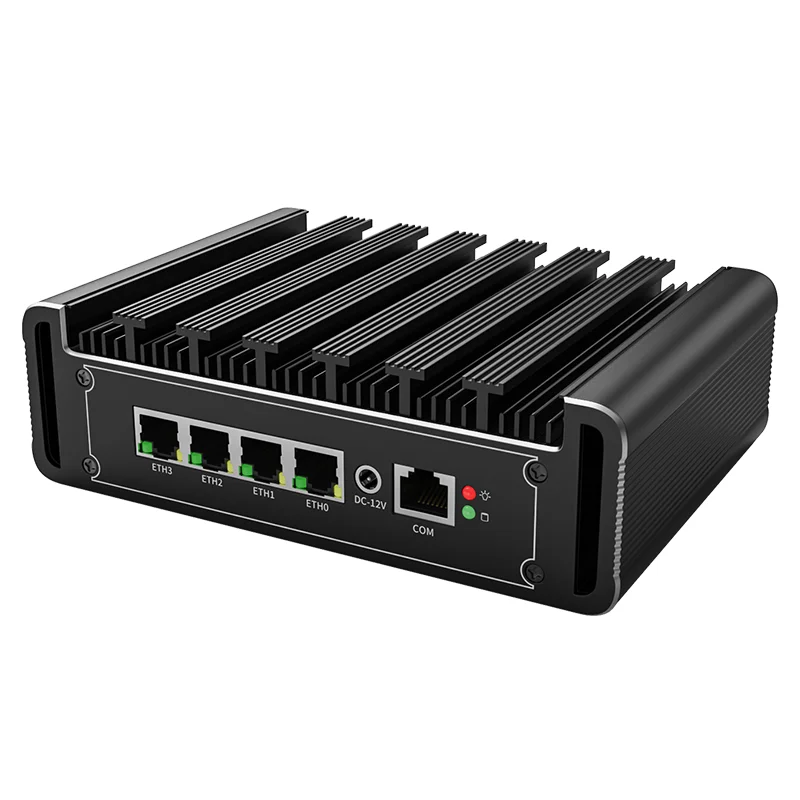

-4xIntel i226-V 2.5GbE RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot.
N100 model: 1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.
N4000/J4125/N6000/N5100/N5105 model: 2xDDR4 SODIMM non-ecc ram slots, support 2400/2666MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1×2.5”SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(USB protocol) connection(optional to buy).
-Support 1xHDMI and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

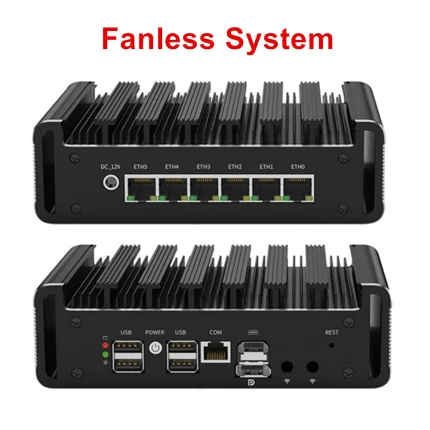

-Solid aluminum alloy fanless system with longer T-shaped fins has better cooling efficiency with a temperature 15-20℃ lower and performance 25-30% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xSATA Cable
X4E N100 model:
X4D N100/N4000/J4125/N6000/N5100/N5105 model:
Welcome to click the picture of VESA Bracket to order together if you need:
